ottoman piston lift up bed frame hinge mechanism for wall bed

This LIFT MECHANISM FRAME is wildly used as STORAGE BED LIFT KIT which is ideal for lifting up mattress, board or bed frame of sofa & bed. It has below advantages:

Feature and Advantages:

-DURABLE & SURDY - The storage bed lift mechanism is made of heavy duty steel material for rugged durability, durable and sturdy to use.

-WIDE APPLICATION -Bed Lift Mechanisms can be oriented to open from the side of the bed, or the end of the bed.

-SPACE SAVING HELPER -The bed lift kit will give you a large under-bed storage space, greatly make full use of your room!

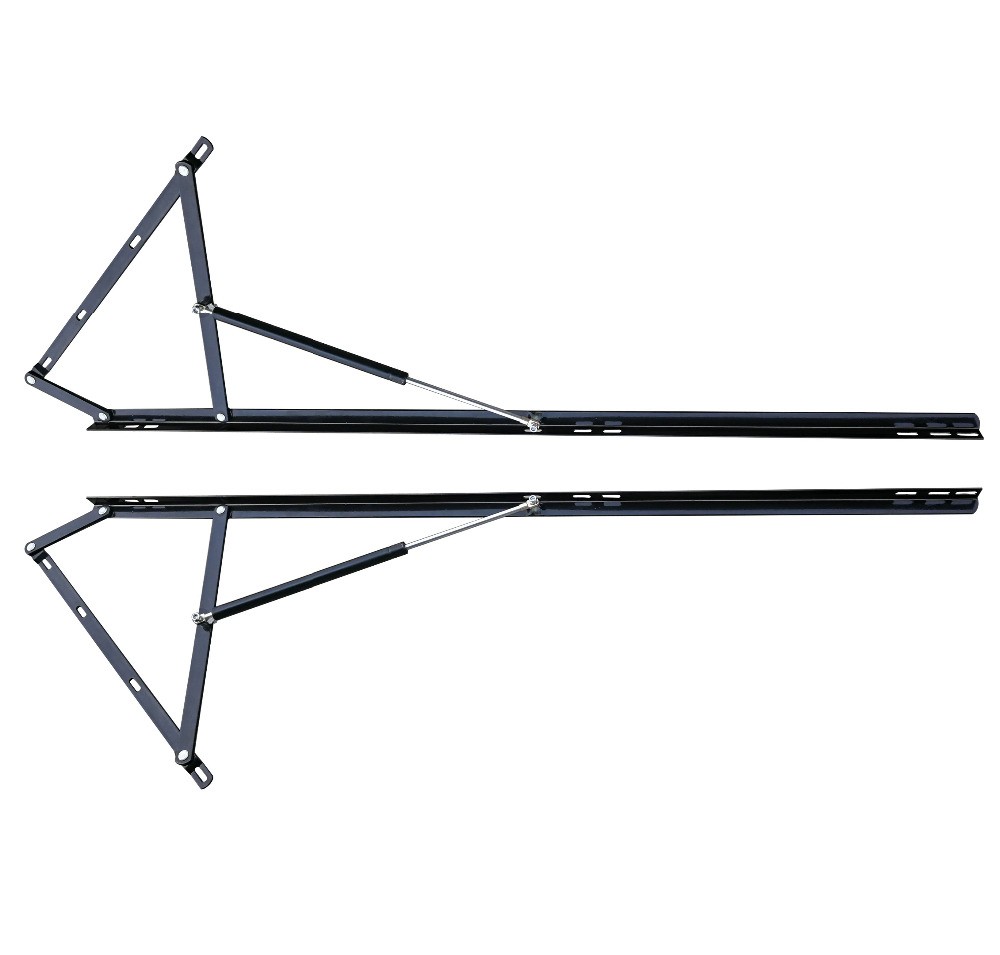

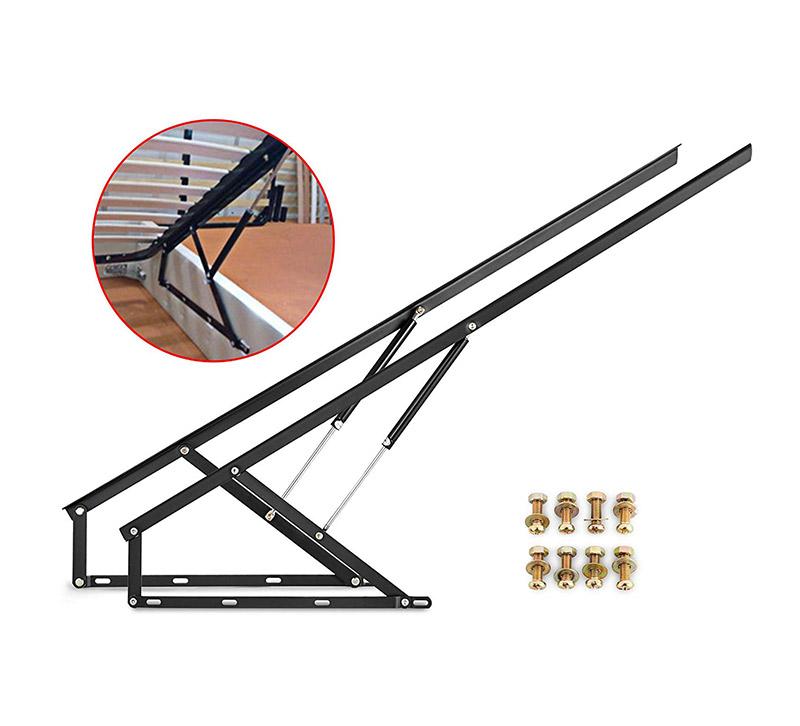

-EASY TO INSTALL - Comes with two lift mechanisms, each fully assembled into a one-piece unit for easy installation. Two gas hydraulic pistons provide easy access to your stored items.

Application:

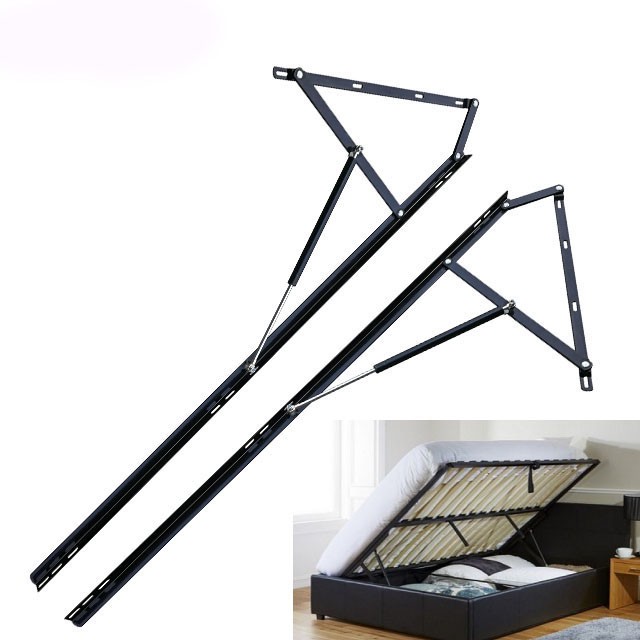

Storage bed

Dimensions:

2ft, 3ft, 4ft and 5ft available.

Back

Quality

Warranty: 5 years

Damage rate: below 0.1%

Compensation policy: Free replacement.

Standard

● 180,000 times -passed TUV fatigue test

● ROHS certificated by SGS

● Passed ISO9001 and ISO/TS 16949 International Quality System Certification

Material

● steel/ss304/ss316

Back

Model	Material	Color	Loading capacity		Product Length		Package Size		Package Weight
			KG	LBS	FT	CM	CM	INCH	KG	LBS
CFBA-600	Steel	White/Black	22	48.5	2	60	62 x 15 x 5	24.4 x 5.9x 2	3.2	7
CFBA-900	Steel	White/Black	40	88	3	90	92 x 15 x 5	36.2 x 5.9 x 2	5.5	12
CFBA-1200	Steel	White/Black	60	132	4	120	122 x 15 x 5	48 x 6 x 2	7	15.4
CFBA-1500	Steel	White/Black	90	185	5	150	152 x 15 x 5	60"x 6x 2	8	17.6
